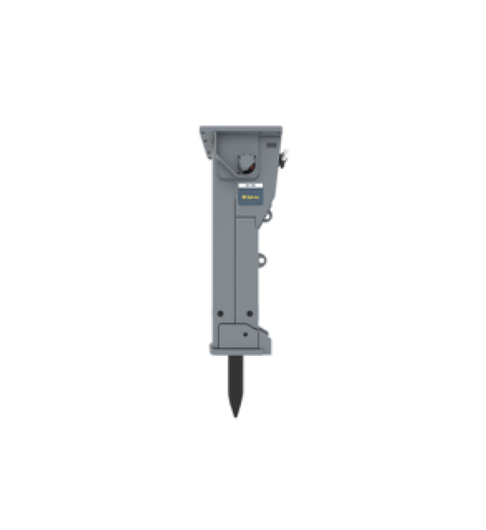

EC 180 hydraulic breaker for excavators of 30-50 tonnes (66,000 -110,000 lb)

Carrier weight class 45 t - 70t

Service weight 4200 kg

Oil flow 250 l/min - 320 l/min

Operating pressure 160 bar - 180 bar

Max. hydraulic input power 81 kW

Impact rate AutoStart mode 540 bpm - 800 bpm

Tool diameter 180 mm

Sound power level, guaranteed 123 dB(A)

Safety and Operating Instructions are here.
